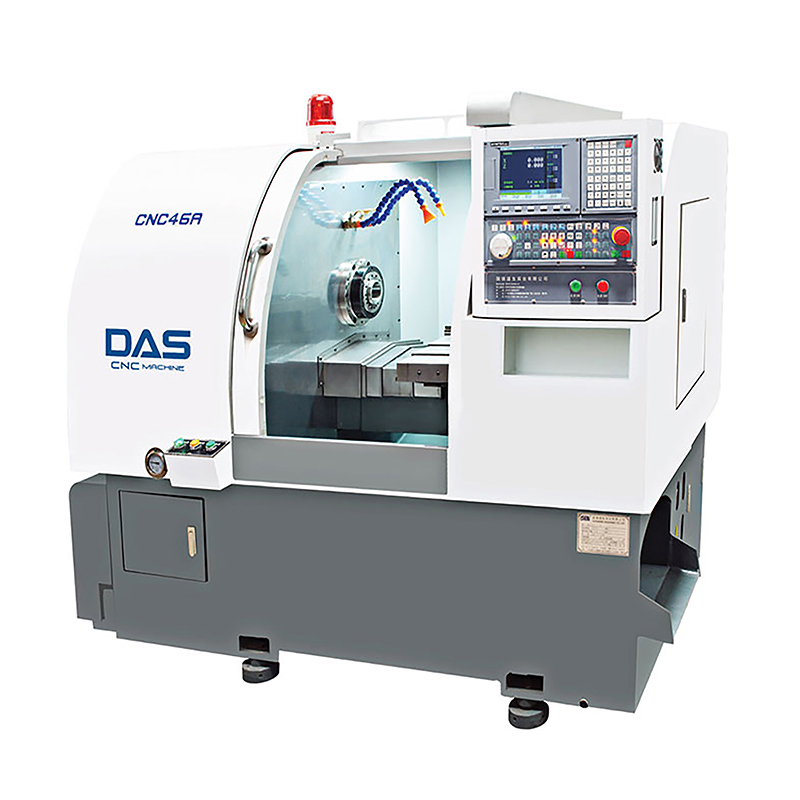

Metal cnc lathe name:   CNC46A

The maximum diameter of rotation (mm):  310

Max.cutting length (mm):  100/200

With chuck size:  6 Inch

Spindle speed (r/min):  45-4500

Spindle power (KW):  5.5(Optional)

Spindle bore (mm):  Φ56

Auto feeding max.diameter (mm):  Φ45

Min.resolution (mm):  0.001

X/Z Axis stroke (mm):  340/250

X/Z axis fast moving speed (m/min):  18

X/Z axis Repetitive positioning accuracy (mm):  0.003/0.003

Cutting feed rate (mm/min):  0-5000

Taper (mm):  ≤0.003/100

Card position size (mm):  ≤0.003

Spindle speed (r/min):  8
